A healthy home begins below ground level. The foundation quietly carries the structural weight of the entire property, yet it often receives attention only when visible problems appear. One of the most alarming discoveries during a home inspection is a crack in a basement wall or floor. While some cracks are minor cosmetic imperfections, others signal structural stress that requires professional evaluation and basement foundation crack repair.

From a home inspection perspective, the goal is not simply to point out damage but to understand why the crack formed and whether it poses a risk to the structural integrity of the home. Horizontal cracks in particular raise immediate concern because they frequently indicate external pressure pushing inward on the wall.

Understanding the difference between cosmetic cracks and structural warning signs can help homeowners respond early and prevent more serious damage.

Why Basement Foundation Cracks Occur

Foundation cracks form when forces acting on the structure exceed the material’s capacity to resist movement. One of the most common forces is hydrostatic pressure.

Hydrostatic pressure develops when water accumulates in the soil surrounding a foundation. The heavier and wetter the soil becomes, the more force it exerts on the basement wall.

Even a relatively shallow column of saturated soil can exert substantial pressure. Engineering data shows that four feet of saturated soil can apply about 250 pounds of pressure per square foot against a basement wall.

Over time, this persistent pressure can cause concrete to crack, bow inward, or allow water infiltration.

Several site conditions commonly contribute to this buildup of pressure:

• Poor exterior drainage

• Improper grading around the foundation

• Saturated or clay-heavy soil

• High groundwater levels

• Freeze and thaw cycles that expand the soil

When these conditions persist, the resulting stress can lead to visible cracking and structural movement.

Why Horizontal Cracks Are a Major Structural Red Flag

Not all cracks indicate the same level of risk. During inspections, horizontal cracks receive special attention because they often indicate lateral pressure from outside soil pushing against the wall.

Because the top and bottom of the wall are restrained by the building structure and footing, the center of the wall becomes the weakest point. As the pressure increases, the middle section may begin to bow inward, eventually forming a horizontal crack.

Engineering research confirms that lateral soil movement commonly results in long horizontal cracks or inward bowing of basement walls.

A small horizontal crack may initially appear harmless. However, if ignored, it can widen, allow water intrusion, and eventually compromise the structural stability of the wall.

Inspectors often monitor several key indicators:

• Length of the crack

• Wall bowing or displacement

• Signs of water seepage

• Interior moisture or efflorescence

If these conditions worsen, structural reinforcement may become necessary.

Common Exterior Causes Inspectors Identify

During property evaluations, inspectors often trace foundation cracks back to issues outside the home.

Poor Drainage

Improperly directed water is the most frequent contributor to hydrostatic pressure. Downspouts that terminate close to the foundation can saturate the surrounding soil and gradually increase pressure against the wall.

Routine gutter maintenance and proper drainage design are frequently discussed in educational articles, such as roof drainage inspection insights and home drainage evaluation techniques.

Overwatered Landscaping

Foundation gardens that require constant watering can unintentionally saturate the soil near the wall. Moist soil increases pressure and can accelerate crack development.

Landscape planning guidance similar to yard grading and moisture control advice often emphasizes maintaining distance between heavy irrigation zones and the foundation.

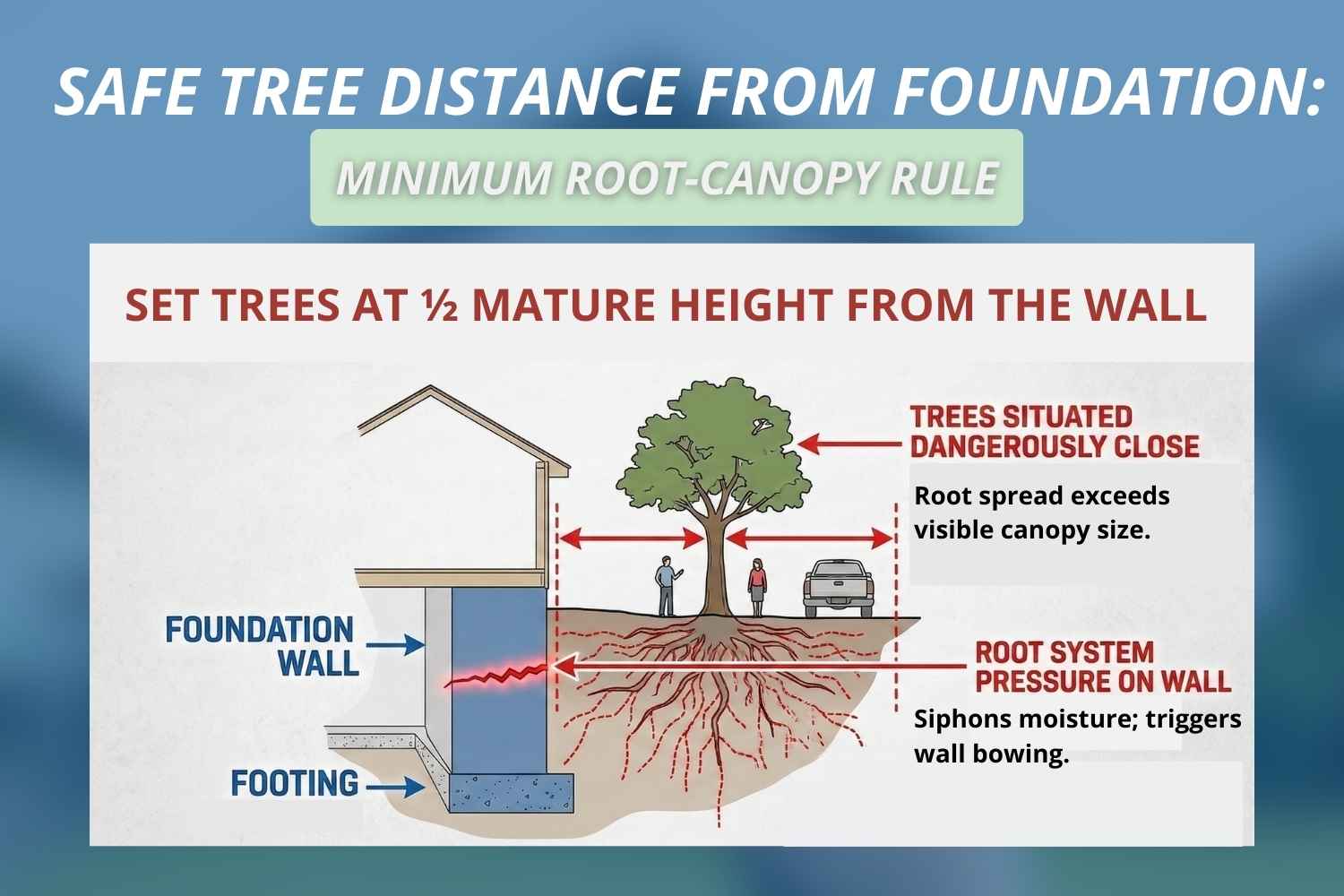

Tree Root Pressure

Large trees planted too close to a structure can exert mechanical pressure on the foundation while also altering soil moisture conditions.

Property maintenance discussions, like property debris and landscape management strategies, highlight how root growth and organic debris accumulation can influence soil stability.

Improper Backfilling

In some cases, the issue originates during original construction. If large rocks or debris were used during backfilling, localized pressure points can develop against the foundation wall.

Inspection resources, such as construction quality inspection tips, often emphasize careful site preparation during building.

Cosmetic vs Structural Foundation Cracks

A key responsibility of a home inspector is determining whether a crack is cosmetic or structural.

Below is a simplified comparison used during evaluations.

Horizontal cracks almost always require further evaluation because they may indicate wall bowing or structural stress.

The Role of Moisture in Foundation Damage

Water plays a central role in foundation deterioration.

When groundwater accumulates around the foundation, the soil behaves like a heavy sponge pressing against the basement wall.

As moisture levels rise, pressure increases. Eventually, the water finds its way through small imperfections or cracks in the concrete.

The following conditions frequently accompany water-related foundation damage:

• Damp basement walls

• Musty odors

• Efflorescence or white mineral deposits

• Mold growth within 24 to 48 hours after water exposure, according to EPA guidance

Managing moisture around the foundation is therefore one of the most important preventive strategies.

The Technical Corner: Tools Used by Professional Inspectors

Modern home inspections rely on specialized tools that help identify hidden problems before they become serious structural failures.

Thermal Imaging Cameras

Thermal cameras detect temperature differences in building materials. Moisture inside walls often changes the thermal signature of the surface.

Inspectors use thermal imaging to locate:

• Hidden moisture behind drywall

• Water intrusion pathways

• Areas of poor insulation or condensation

Moisture Meters

Moisture meters measure the water content in building materials such as drywall, wood, and concrete.

These tools allow inspectors to determine whether a crack is actively allowing water infiltration.

Together, these tools help inspectors distinguish between a harmless cosmetic crack and a structural issue that requires further investigation.

Additional inspection methodology is often discussed in educational articles, such as advanced home inspection technology guides and structural inspection case studies.

Preventive Steps Homeowners Can Take

While structural repairs should always be evaluated by professionals, homeowners can reduce the likelihood of foundation damage through several preventative measures.

Improve Exterior Drainage

• Repair leaking gutters

• Extend downspouts at least several feet away from the home

• Maintain proper grading that slopes away from the foundation

Reduce Soil Saturation

• Avoid overwatering foundation landscaping

• Maintain proper drainage systems

• Monitor irrigation systems

Manage Vegetation

• Keep large trees at a safe distance from the foundation

• Trim roots that may apply pressure on the basement walls

Monitor Existing Cracks

Minor cracks should be monitored for changes over time. Signs that warrant professional evaluation include:

• Increasing crack width

• Wall bowing

• Water seepage

• Interior mold or moisture

Routine inspection guidance found in articles like annual home maintenance checklists and pre-purchase inspection advice can help homeowners identify these issues early.

When Professional Structural Evaluation Is Necessary

Home inspectors identify warning signs, but structural engineers or foundation specialists typically determine the appropriate repair method.

If a horizontal crack is discovered, professionals may recommend solutions such as:

• Steel reinforcement beams

• Anchor plate systems

• Concrete buttresses or pilasters

• Exterior drainage improvements

These methods stabilize the wall and reduce external pressure from surrounding soil.

Ignoring structural cracks can eventually lead to severe wall movement or even partial collapse in extreme situations.

Early evaluation is therefore essential.

Related Questions

Are basement wall cracks always serious?

Not necessarily. Many cracks are cosmetic shrinkage cracks that occur as concrete cures. However, inspectors evaluate the crack’s orientation, size, and location to determine whether it indicates structural movement or water intrusion. Horizontal cracks or bowing walls typically require further professional evaluation.

Can foundation cracks lead to moisture problems?

Yes. The R&C Inspectors blog explains that even small cracks can allow moisture to enter a basement environment. Over time, this moisture can cause mold growth, material deterioration, and poor indoor air quality if not addressed.

When should homeowners request a professional inspection?

Homeowners should schedule a professional inspection if cracks begin to widen, water intrusion becomes visible, or walls show signs of bowing. Early inspection allows the issue to be evaluated before structural repairs become more complex and costly.

Conclusion

Basement foundation cracks are not just cosmetic blemishes. They are signals that something in the surrounding environment or structure is applying stress to the foundation. While some cracks are harmless, horizontal cracks demand careful attention because they often indicate external soil pressure pushing inward on the wall.

A professional home inspection helps determine whether the crack is structural or cosmetic, identify moisture-related risks, and recommend appropriate next steps. Using tools such as moisture meters and thermal imaging, inspectors can uncover hidden conditions that are not visible during a simple visual walkthrough.

If you notice cracks in your basement walls, especially horizontal cracks or signs of bowing, the safest approach is to consult a qualified inspection professional.
